Role of Elevator Cables in Safe Vertical Transport
Importance and Role of Elevator Cables in Vertical Transport Safety
Modern cities have made riding in elevators something indispensable, as the ability to travel vertically without strain makes it easy to navigate buildings that are high-rises, business parks, and apartment blocks. While most people notice elevator cabins or buttons, the smooth movement depends on elevator cables.
The essence of any elevator system is a network of cables that work as the load-bearing element, transport power, and provide continuous communications between different elevator parts. This blog guides on elevator cables, their basic features, how they provide safety, and the types of elevator cables.
Important Elevator Cable Functions
Elevator cables possess multi-dimensional functions:
1. Load Bearing and Motion Control

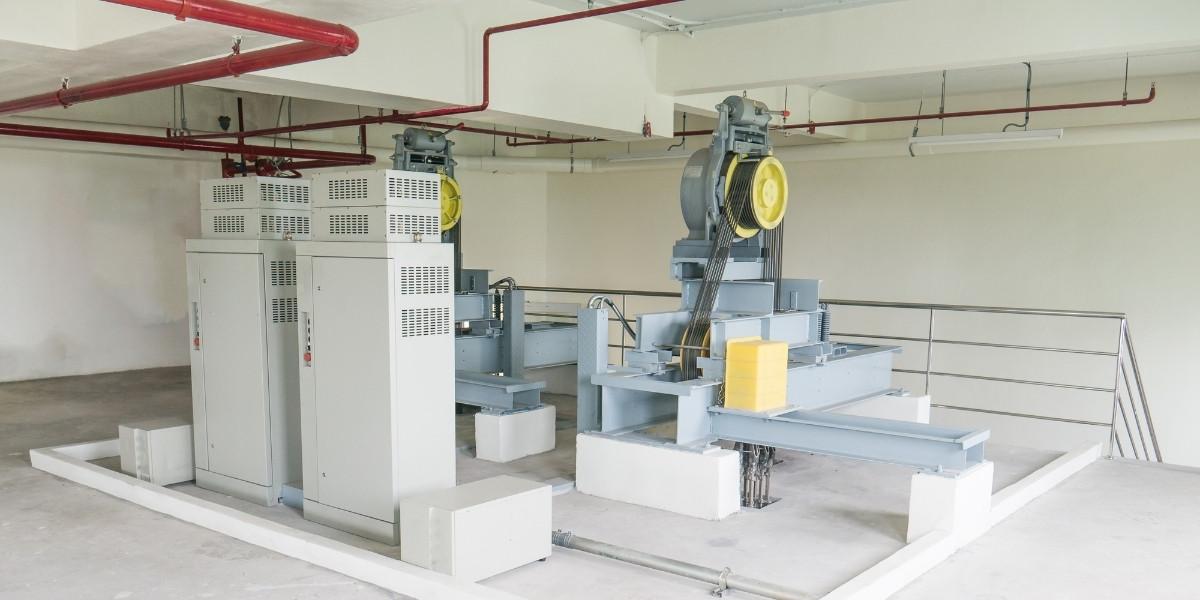

Hoist ropes carry the full weight of the car, passengers, and counterweight. They hold everything in tension while the traction machine guides the ropes over the sheave. Their steel-wire construction delivers very high tensile strength and generous safety margins, so the car stays supported as loads change throughout the day.
2. Power Transmission
In traveling cables, bundled copper conductors carry mains and control voltages from the controller to the moving car. They power cabin lights, fans, indicators, door operators, and charging for accessories, while dedicated lines keep the alarm and intercom alive. The cable’s fine copper strands and flexible insulation let it bend millions of times without damage, while fillers keep it stable so it won’t twist or flatten.
3. Signal and Data Communication
Traveling cables don't just move power; they carry the elevator's "conversation" in both directions. Twisted pairs and shielded cores transmit car calls, hall calls, door status, overload signals, limit switches, and emergency stop circuits to the controller. In contrast, the controller sends back position indicators, chimes, and display updates.
4. Safety and Emergency Support
The role of elevator cables also involves maintaining emergency functions; if there is an instance of a malfunction, alarm bells, intercom systems, and lighting are expected to be operational. The elevator cable functions include ensuring user comfort, tap-free processes, and safety.
5. Compensation and Balance
In high-rise elevators, compensation cables (or chains) link the car and counterweight to offset the changing weight of hoist and traveling cables as the car moves. It keeps traction and tension steady, reduces sway and noise, ensures smoother floor leveling, and helps the whole system work more efficiently.
The Role of Elevator Cables in Safe Vertical Transport
Discussing the importance of cables in elevator safety, there is an obvious reason why cables are regarded as one of the most important elevator parts. The security and satisfaction of passengers depend directly on their performance.
1. Durability Under Stress
Elevator cables are built to bend and flex constantly, lasting through millions of trips without failing. Wear resistance is assured by quality materials to prevent any accident that can have a risk of sudden failure.
2. Fail-Safe Operation
The design of modern elevator systems has multiple cables, and thus, even when one cable jams or breaks, other cables firmly support the cabin. This redundancy is a direct response to the way cables provide reliable vertical transportation protection.
3. Fire-Resistance and Security
Traveling cables are made flame-retardant. This will ensure that other critical communication and safety functions are not interrupted when an emergency, like a fire, occurs.
4. Global Standards Compliance
Elevator cables are to be designed to meet very strict safety requirements and the requirements set out in international regulations to be safe and reliable. Quality suppliers like Elevator Mart only offer tested, certified cables to fulfill these requirements.
There is no doubt that Elevator cables ensure safe vertical transportation. They are a combination of engineering accuracy, durability, and reliability that ensures the safety of passengers.
Types of Elevator Cables and Their Applications
Different types of buildings and elevator systems require different elevator cables. This knowledge guides engineers and facility managers in making appropriate decisions.

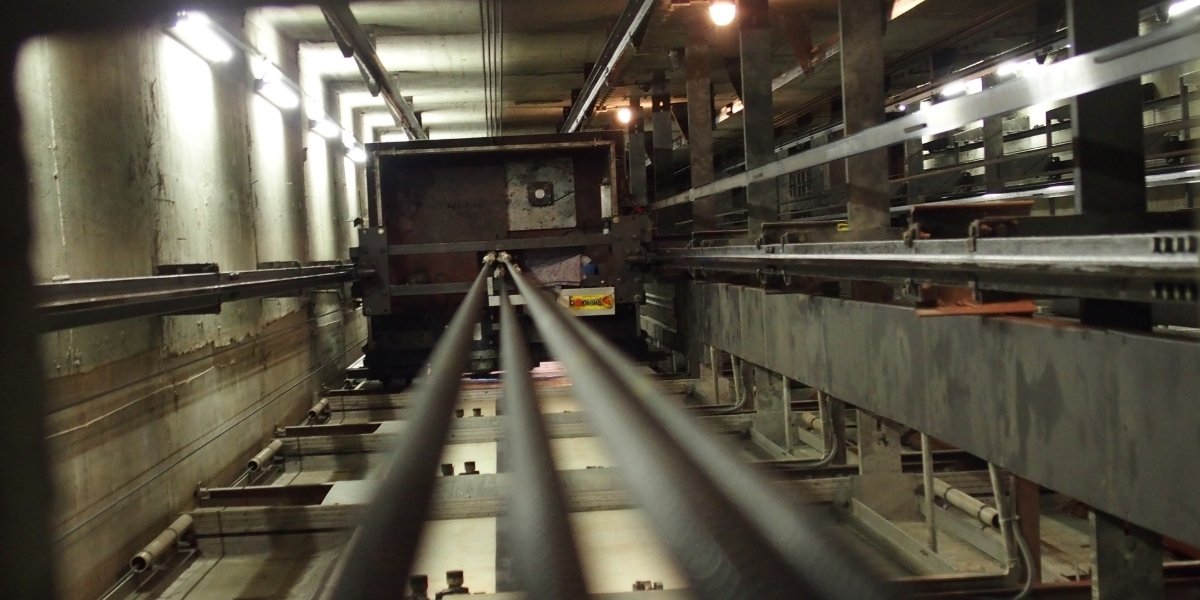

Hoist ropes (steel wire ropes)
These ropes carry the load. They raise the elevator and then guide it back. They can easily carry heavy loads several times a day. You will see them in tall residential towers and busy commercial buildings where reliability is non-negotiable.
Traveling Cables
The moving lifeline between the car and the control gear. These cables carry power, signals, and data. Their jackets are flame-retardant, and their construction is highly flexible, so they can bend constantly without failing. These are commonly used in passenger lifts, service lifts, and hospital elevators.
Governor Ropes
Governor ropes attach the speed governor to the safety gear. When the car goes too fast, the governor trips; the safety gear clamps down and safely slows the car. Consistent diameter and construction give these ropes the accuracy and repeatability that safety systems depend on.
Compensating Cables
In very tall shafts, the weight of the hoist ropes can cause disbalance. Compensating cables hang beneath the car and counterweight to even things out, cutting vibration and keeping the ride smooth. They're a staple of high-rise and super-tall installations.
Specialized Flat Traveling Cables
If the space is tight, then flat profiles make routing easier. It also save precious room in the shaft. These cables handle tight bend radii and fit neatly into compact layouts, making them a wise choice for modern, space-efficient elevator designs.
By correctly choosing the cable type, engineers can maximize performance and safety and increase the system's lifetime, while reducing downtime, maintenance costs, vibration, and unexpected operational failures.
The Hidden Lifelines of Safe Transport
The lifting cables are the lifelines hidden in the heart of modern buildings. Most passengers and other individuals often ignore them. However, one cannot disregard their crucial role; after all, they can support significant weights, transfer signals, and provide emergency assistance.
These cables keep vertical transport systems functioning for a significant period of years.
Are you a builder, facility manager, or elevator service provider who requires lifting cables and other high-quality parts? Elevator Mart, one of the trusted elevator spare parts suppliers in Dubai, provides a complete line of products and quality solutions, ensuring that your elevators keep running and functioning safely and efficiently.
