Encoder |
EI100H35-1024BR-30Y1 |
In Stock (17 Nos.)
Product Description

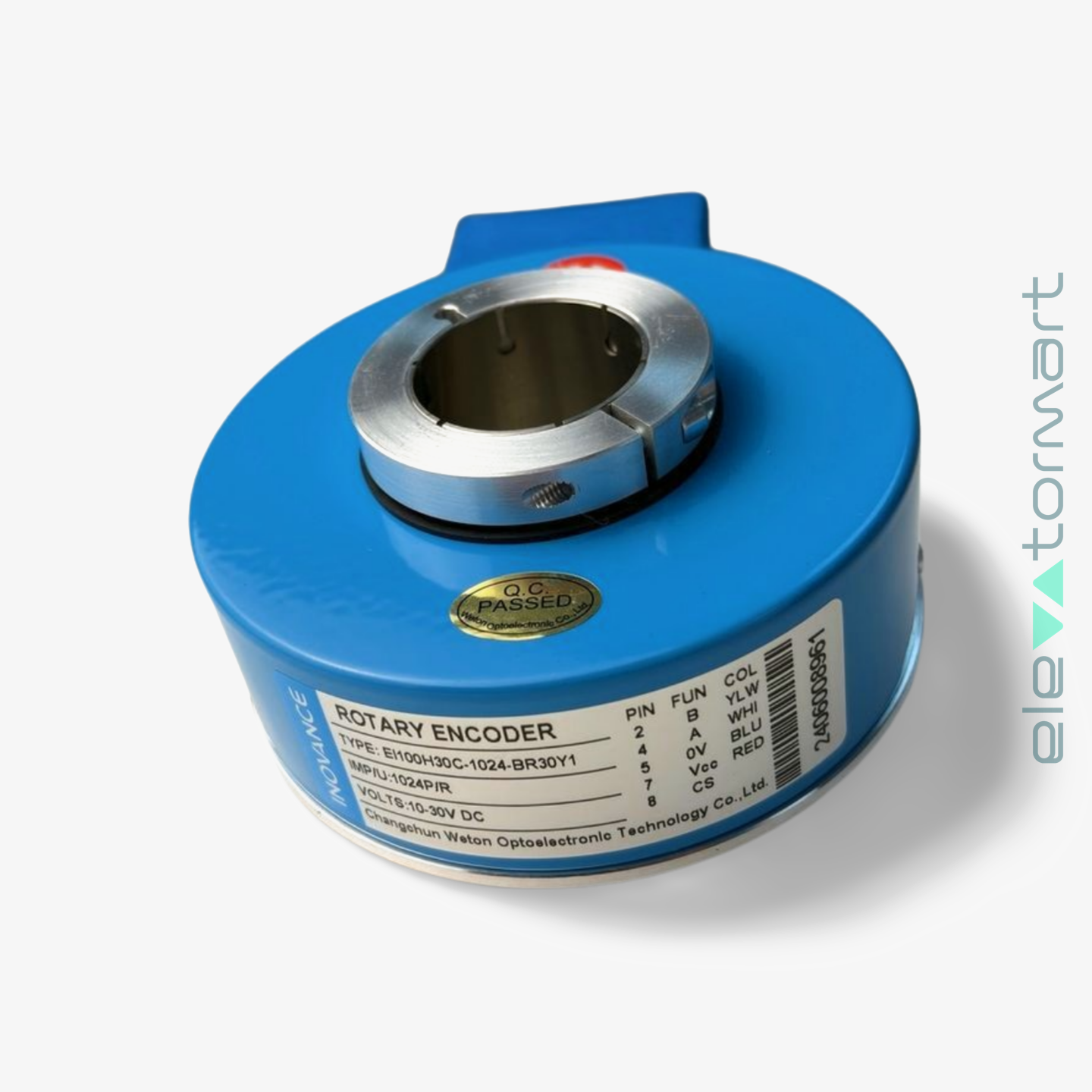

EI100H35‑1024BR‑30Y1 is an elevator rotary incremental encoder that provides precise shaft position and speed feedback for elevator drive and control systems.
Product Specification
Model Number
EI100H35-1024BR-30Y1
Part Type
Incremental Rotary Encoder
Resolution
1024 PPR
Shaft Diameter
10 mm
Housing Diameter
100 mm
Supply Voltage
5–30 VDC
Mounting
Flange mounting
Operating Temperature
-20°C to +85°C
Output Format
A
Function
Converts shaft rotational motion into electrical pulse feedback for the elevator controller or inverter to enable smooth speed control, accurate positioning, and precise leveling.
